如何将canvas动画导成一个视频？
引言
某一天我突然有个想法，我想用canvas做一个音频可视化的音谱，然后将这个音频导出成视频。
使用canvas实现音频可视化，使用ffmpeg导出视频与音频，看起来方案是可行的，技术也是可行的，说干就干，先写一个demo。
这里我使用vue来搭建项目
- 创建项目
vue create demo
- 安装ffmpeg插件
npm @ffmpeg/ffmpeg @ffmpeg/core
- 组件videoPlayer.vue
这里有个点需要注意：引用@ffmpeg/ffmpeg可能会报错
需要将node_modules中@ffmpeg文件下面的 - ffmpeg-core.js
- ffmpeg-core.wasm
- ffmpeg-core.worker.js
这三个文件复制到public文件下面 - 并且需要在vue。config.js中进行如下配置
const { defineConfig } = require('@vue/cli-service')
module.exports = defineConfig({
transpileDependencies: true,
devServer:{
headers: {
"Cross-Origin-Opener-Policy": "same-origin",
"Cross-Origin-Embedder-Policy": "require-corp",
}
}
})
准备好这些后，下面是实现代码
<template>
<div class="wrap" v-loading="loading" element-loading-text="正在下载视频。。。">
<div>
<input type="file" @change="handleFileUpload" accept="audio/*" />
<button @click="playAudio">播放</button>
<button @click="pauseAudio">暂停</button>
</div>
<div class="canvas-wrap">
<canvas ref="canvas" id="canvas"></canvas>
</div>
</div>
</template>
<script>
import RainDrop from './rain'
import { createFFmpeg, fetchFile } from '@ffmpeg/ffmpeg';
export default {
name: 'canvasVideo',
data() {
return {
frames: [],
recording: false,
ffmpeg: null,
x: 0,
loading: false,
canvasCtx: null,
audioContext: null,
analyser: null,
bufferLength: null,
dataArray: null,
audioFile: null,
audioElement: null,
audioSource: null,
// 谱频个数
barCount: 64,
// 宽度
barWidth: 10,
marginLeft: 10,
player: false,
rainCount: 200,
rainDrops: [],
pausePng: null,
offscreenCanvas: null
};
},
mounted() {
this.ffmpeg = createFFmpeg({ log: true });
this.initFFmpeg();
},
methods: {
async initFFmpeg() {
await this.ffmpeg.load();
this.initCanvas()
},
startRecording() {
this.recording = true;
this.captureFrames();
},
stopRecording() {
this.recording = false;
this.exportVideo();
},
async captureFrames() {
const canvas = this.canvasCtx.canvas;
const imageData = canvas.toDataURL('image/png');
this.frames.push(imageData);
},
async exportVideo() {
this.loading = true
this.recording = false
const { ffmpeg } = this;
console.log('frames', this.frames)
try {
for (let i = 0; i < this.frames.length; i++) {
const frame = this.frames[i];
const frameData = await fetchFile(frame);
ffmpeg.FS('writeFile', `frame${i}.png`, frameData);
}
// 将音频文件写入 FFmpeg 文件系统
ffmpeg.FS('writeFile', 'audio.mp3', await fetchFile(this.audioFile));
// 使用 FFmpeg 将帧编码为视频
await ffmpeg.run(
'-framerate', '30', // 帧率 可以收费
'-i', 'frame%d.png', // 输入文件名格式
'-i', 'audio.mp3', // 输入音频
'-c:v', 'libx264', // 视频编码器
'-c:a', 'aac', // 音频编码器
'-pix_fmt', 'yuv420p', // 像素格式
'-vsync', 'vfr', // 同步视频和音频
'-shortest', // 使视频长度与音频一致
'output.mp4' // 输出文件名
);
const files = ffmpeg.FS('readdir', '/');
console.log('文件系统中的文件:', files);
const data = ffmpeg.FS('readFile', 'output.mp4');
const url = URL.createObjectURL(new Blob([data.buffer], { type: 'video/mp4' }));
const a = document.createElement('a');
a.href = url;
a.download = 'output.mp4';
a.click();
} catch (e) {
console.log('eeee', e)
}
this.loading = false
},
initCanvas() {
const dom = document.getElementById('canvas');
this.canvasCtx = dom.getContext('2d');
const p = document.querySelector('.canvas-wrap')
console.log('p', p.offsetWidth)
this.canvasCtx.canvas.width = p.offsetWidth;
this.canvasCtx.canvas.height = p.offsetHeight;
console.log('canvasCtx', this.canvasCtx)
this.initAudioContext()
this.createRainDrops()
},
handleFileUpload(event) {
const file = event.target.files[0];
if (file) {
this.audioFile = file
const fileURL = URL.createObjectURL(file);
this.loadAudio(fileURL);
}
},
loadAudio(url) {
this.audioElement = new Audio(url);
this.audioElement.addEventListener('error', (e) => {
console.error('音频加载失败:', e);
});
this.audioSource = this.audioContext.createMediaElementSource(this.audioElement);
this.audioSource.connect(this.analyser);
this.analyser.connect(this.audioContext.destination);
},
playAudio() {
if (this.audioContext.state === 'suspended') {
this.audioContext.resume().then(() => {
console.log('AudioContext 已恢复');
this.audioElement.play();
this.player = true
this.draw();
});
} else {
this.audioElement.play().then(() => {
this.player = true
this.draw();
}).catch((error) => {
console.error('播放失败:', error);
});
}
},
pauseAudio() {
if (this.audioElement) {
this.audioElement.pause();
this.player = false
this.stopRecording()
}
},
initAudioContext() {
this.audioContext = new (window.AudioContext || window.webkitAudioContext)();
this.analyser = this.audioContext.createAnalyser();
this.analyser.fftSize = 256;
this.dataArray = new Uint8Array(this.barCount);
},
bar() {
let barHeight = 20;
const allBarWidth = this.barCount * this.barWidth + this.marginLeft * (this.barCount - 1)
const left = (this.canvasCtx.canvas.width - allBarWidth) / 2
let x = left
for (let i = 0; i < this.barCount; i++) {
barHeight = this.player ? this.dataArray[i] : 0
// console.log('barHeight', barHeight)
// 创建线性渐变
const gradient = this.canvasCtx.createLinearGradient(0, 0, this.canvasCtx.canvas.width, 0); // 从左到右渐变
gradient.addColorStop(0.2, '#fff'); // 起始颜色
gradient.addColorStop(0.5, '#ff5555');
gradient.addColorStop(0.8, '#fff'); // 结束颜色
// 设置阴影属性
this.canvasCtx.shadowColor = i <= 10 ? '#fff' : i > 54 ? '#fff' : '#ff5555';
this.canvasCtx.shadowBlur = 5;
this.canvasCtx.fillStyle = gradient;
this.canvasCtx.fillRect(x, this.canvasCtx.canvas.height - barHeight / 2 - 100, this.barWidth, barHeight / 2);
this.canvasCtx.shadowColor = i <= 10 ? '#fff' : i > 54 ? '#fff' : '#ff5555';
this.canvasCtx.shadowBlur = 5;
this.canvasCtx.beginPath();
this.canvasCtx.arc(x + 5, this.canvasCtx.canvas.height - barHeight / 2 - 99, 5, 0, Math.PI, true)
// this.canvasCtx.arc(x + 5, this.canvasCtx.canvas.height - barHeight / 2, 5, 0, Math.PI, false)
this.canvasCtx.closePath();
this.canvasCtx.fill()
this.canvasCtx.shadowColor = i <= 10 ? '#fff' : i > 54 ? '#fff' : '#ff5555';
this.canvasCtx.shadowBlur = 5;
this.canvasCtx.beginPath();
// this.canvasCtx.arc(x + 5, this.canvasCtx.canvas.height - barHeight / 2 - 100, 5, 0, Math.PI, true)
this.canvasCtx.arc(x + 5, this.canvasCtx.canvas.height - 100, 5, 0, Math.PI, false)
this.canvasCtx.closePath();
this.canvasCtx.fill()
x += this.barWidth + this.marginLeft;
}
},
draw() {
if (this.player) requestAnimationFrame(this.draw);
this.startRecording()
// 获取频谱数据
this.analyser.getByteFrequencyData(this.dataArray);
this.canvasCtx.fillStyle = 'rgb(0, 0, 0)';
this.canvasCtx.fillRect(0, 0, this.canvasCtx.canvas.width, this.canvasCtx.canvas.height); // 清除画布
this.bar()
this.rainDrops.forEach((drop) => {
drop.update();
drop.draw(this.canvasCtx);
});
},
// 创建雨滴对象
createRainDrops() {
for (let i = 0; i < this.rainCount; i++) {
this.rainDrops.push(new RainDrop(this.canvasCtx.canvas.width, this.canvasCtx.canvas.height, this.canvasCtx));
}
},
}
};
</script>

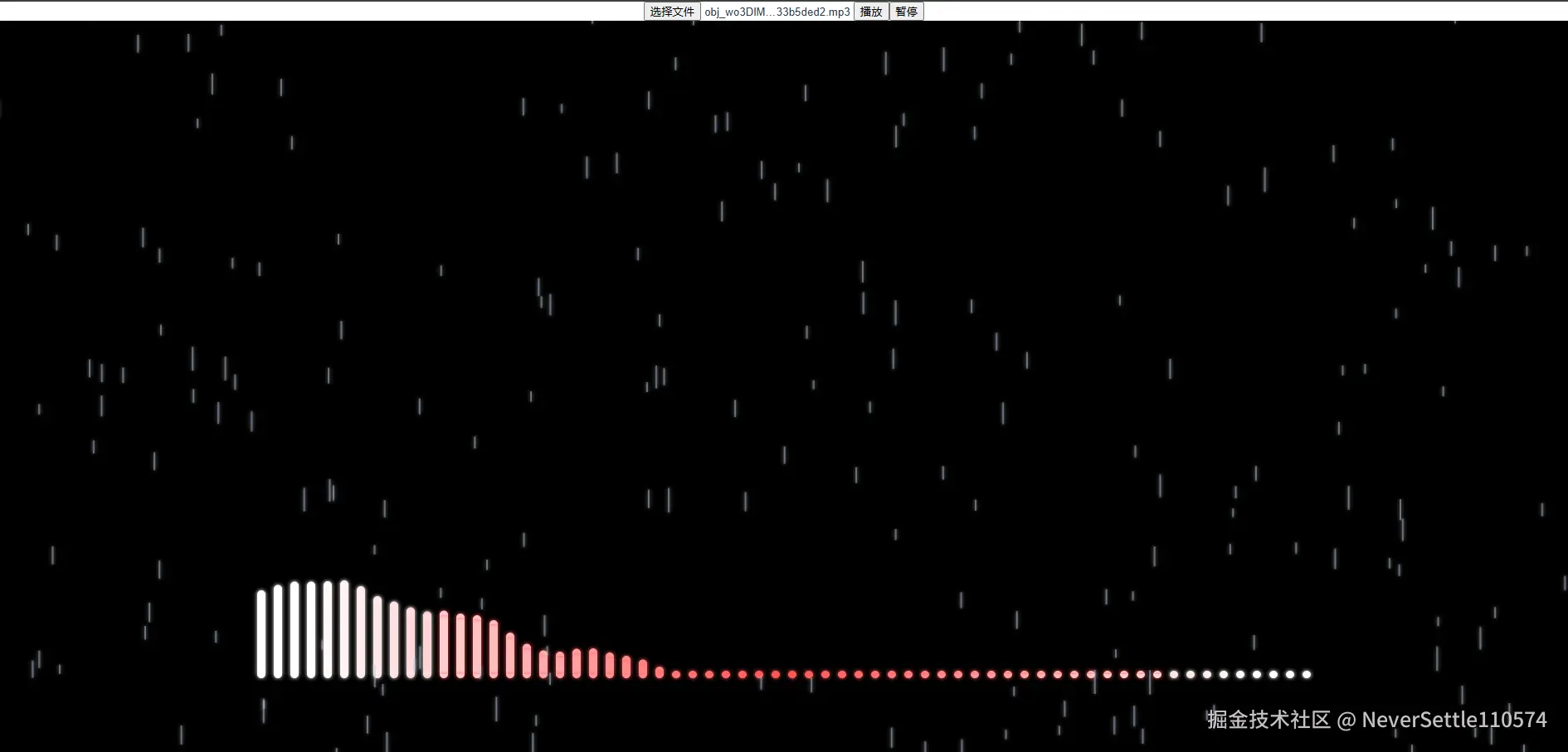

当选择好音频文件点击播放时如下图

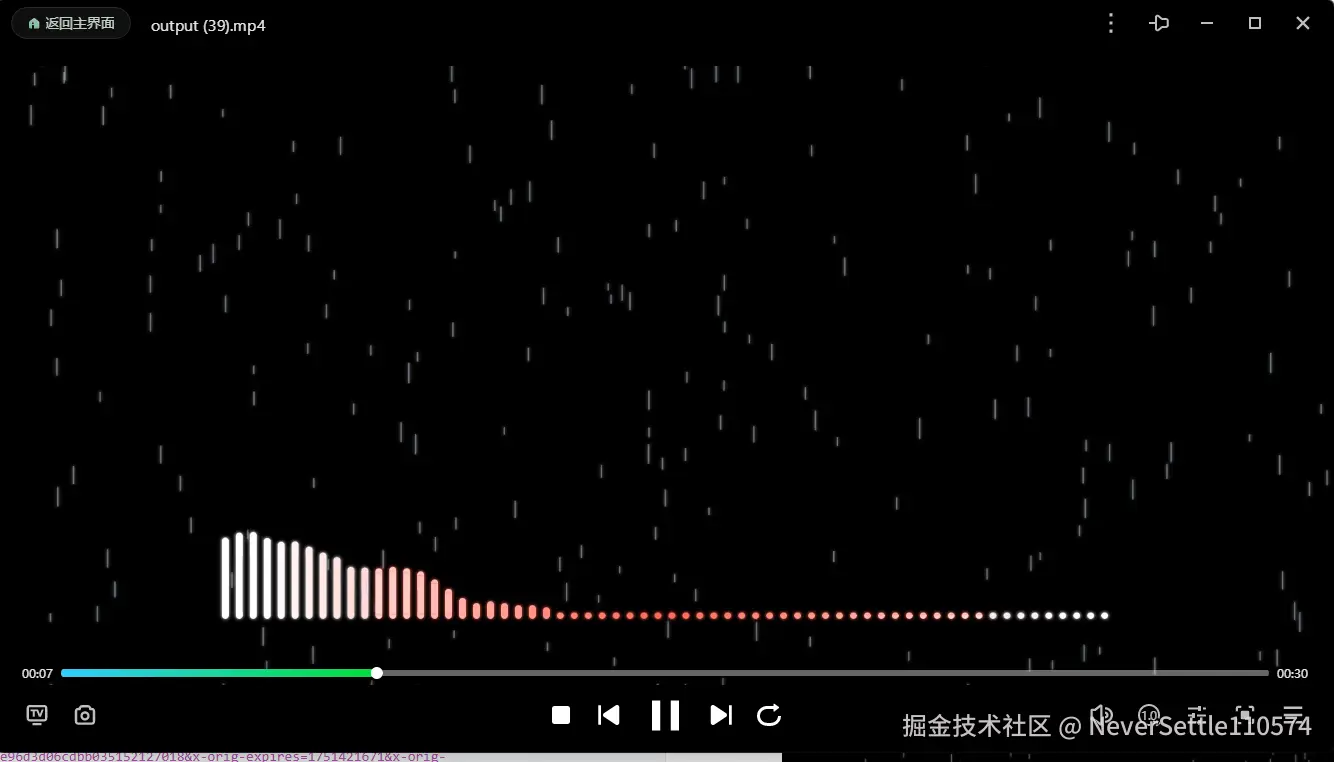

点击暂停则可对已经播放过的音频时长进行视频录制下载
如果有什么其他问题欢迎在评论区交流
