Android唤醒锁优化指南

原文：xuanhu.info/projects/it…

Android唤醒锁优化指南

唤醒锁机制深度剖析

底层工作原理

当Android应用需要保持CPU运行时，会通过PowerManager.PartialWakeLock向系统发起请求。该机制直接与Linux内核的wakelock子系统交互：

// 获取PowerManager实例
PowerManager powerManager = (PowerManager) getSystemService(Context.POWER_SERVICE);

// 创建PARTIAL_WAKE_LOCK标记的唤醒锁

PowerManager.WakeLock wakeLock = powerManager.newWakeLock(

    PowerManager.PARTIAL_WAKE_LOCK,
"MyApp::LocationUpdateWakeLock" // 推荐命名规范：应用名::功能模块

);

// 获取唤醒锁（必须在后台线程操作）

wakeLock.acquire();

try {
// 执行需要保持CPU唤醒的任务

    processLocationUpdates();

} finally {
// 确保在任何情况下都释放锁
if (wakeLock.isHeld()) {

        wakeLock.release();

    }

}

关键点解析：

•

• PARTIAL_WAKE_LOCK允许CPU运行但屏幕保持关闭

• 命名规范需明确标识功能模块，便于问题追踪

• try-finally块是防止锁泄漏的核心防御机制


Android Vitals监控标准

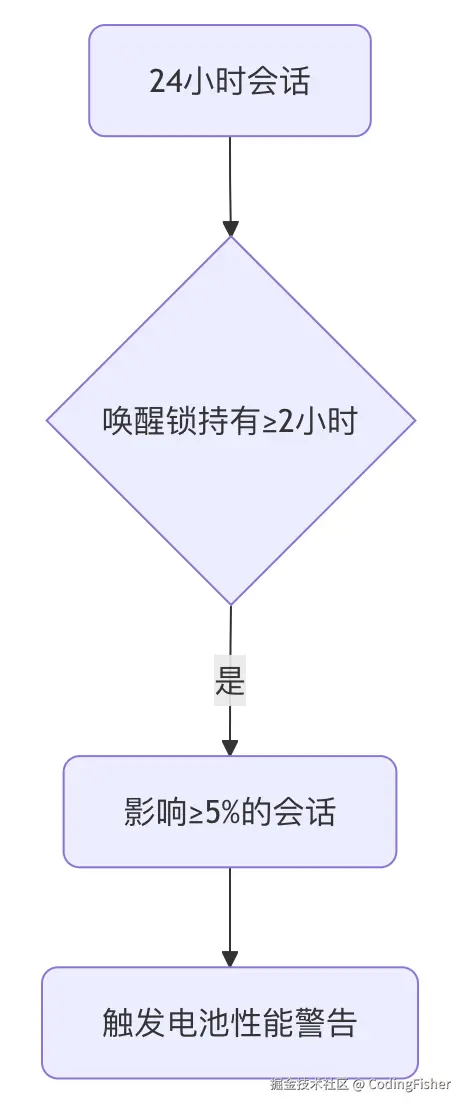

Google Play Console定义过度使用阈值：

高级优化策略实战

场景化最佳实践

定位服务优化方案

// 使用带超时的唤醒锁

wakeLock.acquire(10 * 60 * 1000); // 10分钟超时

// 结合JobScheduler实现智能唤醒

JobInfo.Builder builder = new JobInfo.Builder(jobId, serviceComponent);

builder.setMinimumLatency(intervalMillis);

builder.setRequiresDeviceIdle(true); // 仅在设备空闲时执行

网络请求优化技巧

// 使用WorkManager的灵活约束
val constraints = Constraints.Builder()

    .setRequiredNetworkType(NetworkType.CONNECTED)

    .setRequiresBatteryNotLow(true)

    .build()

val uploadWork = OneTimeWorkRequestBuilder<UploadWorker>()

    .setConstraints(constraints)

    .setBackoffCriteria(BackoffPolicy.EXPONENTIAL, 10, TimeUnit.MINUTES)

    .build()

调试工具链深度应用

Perfetto系统追踪

// 捕获唤醒锁事件

trace_config {

  buffers {

    size_kb: 10240

  }

  data_sources {

    config {

      name: "android.power"

      android_power_config {

        battery_poll_ms: 1000

        collect_power_rails: true

      }

    }

  }

}

分析路径： PowerManagerService > wake_lock_acquire/release事件

WorkManager调试

// 获取任务停止原因

WorkManager.getInstance(context).getWorkInfoById(workRequest.id)

    .addListener({ workInfo ->
if (workInfo.state == WorkInfo.State.FAILED) {
val stopReason = workInfo.getStopReason()

            when (stopReason) {

                WorkInfo.STOP_REASON_CONSTRAINT_NOT_MET -> // 约束未满足

                WorkInfo.STOP_REASON_DEVICE_STATE -> // 设备状态限制

            }

        }

    }, executor)

生产环境监控

# 通过ProfilingManager收集现场数据

profilingManager = context.getSystemService(Context.PROFILING_SERVICE)
if (profilingManager != null) {

    profilingManager.startProfiling(
"wake_lock_debug",

        Duration.ofMinutes(5),

        Executors.newSingleThreadExecutor()

    )

}

架构级优化方案

现代后台任务架构

graph LR

    A[前台服务] --> B(唤醒锁)

    C[WorkManager] --> D[系统级节流]

    E[AlarmManager] --> F[精确时间任务]

    G[JobScheduler] --> H[批处理任务]


    classDef optimal fill:#9f9,stroke:#333;

    class C,G optimal;

电池优化白名单策略

<!-- AndroidManifest.xml -->
<uses-permission android:name="android.permission.REQUEST_IGNORE_BATTERY_OPTIMIZATIONS"/>

// 检查当前状态
PowerManager pm = (PowerManager) getSystemService(POWER_SERVICE);
if (!pm.isIgnoringBatteryOptimizations(packageName)) {
// 引导用户手动添加
Intent intent = new Intent(Settings.ACTION_REQUEST_IGNORE_BATTERY_OPTIMIZATIONS);

    intent.setData(Uri.parse("package:" + packageName));

    startActivity(intent);

}

性能监控体系构建

自定义监控指标

class WakeLockMonitor {
private val lockHoldTimes = ConcurrentHashMap<String, Long>()

fun trackAcquisition(tag: String) {

        lockHoldTimes[tag] = SystemClock.elapsedRealtime()

    }

fun trackRelease(tag: String) {
val start = lockHoldTimes[tag] ?: return
val duration = SystemClock.elapsedRealtime() - start


        FirebaseAnalytics.getInstance(context).logEvent("wake_lock_duration", bundleOf(
"tag" to tag,
"duration_min" to TimeUnit.MILLISECONDS.toMinutes(duration)

        ))

    }

}

总结

核心优化原则总结
